Monitor Humidity in a server room using ActiveXperts

Monitor Humidity

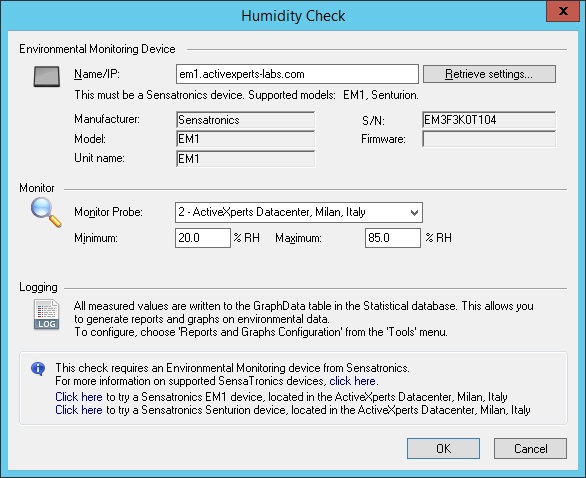

    Figure 1: ActiveXperts Network Monitor Humidity Check


ActiveXperts solution to monitor Humidity

ActiveXperts Network Monitor requires an Environmental Monitor device from Sensatronics to monitor humidity. The Environmental Monitor connects directly to your network via an Ethernet hub or switch. With Sensatronics the application addresses issues beyond typical server CPU temperature as storage, network or telecom environmental issues are inclusive.

ActiveXperts supports the following Sensatronics devices to monitor humidity:

  • Model EM1 (can be used with ActiveXperts Network Monitor to monitor temperature, humidity and wetness);
  • Model Senturion (can be used with ActiveXperts Network Monitor to monitor temperature, humidity, wetness, power, light, motion, smoke, door, resistance, switch/NC, switch/NO).

All devices a capable of monitoring humidity on 4 (or more) locations.

A Humidity check requires the following parameters:

  • Host - The host name or IP address of the network interface of the Sensatronics device; use a port prefix to specify another port that the default port (port 80)
  • Monitor Probe - Select a probe;
  • Minimum - Minimum required value;
  • Maximum - Maximum allowed value;
  • Logging - Enable Logging (y/n); Press on the 'Settings' button to configure logging. By default, ActiveXperts Network Monitor logs to an MS Access database.
Humidity More information on supported Sensatronics devices by ActiveXperts Software
Humidity  Order AX007-0300: Network Monitor + Sensatronics EM1 Environmental Device
